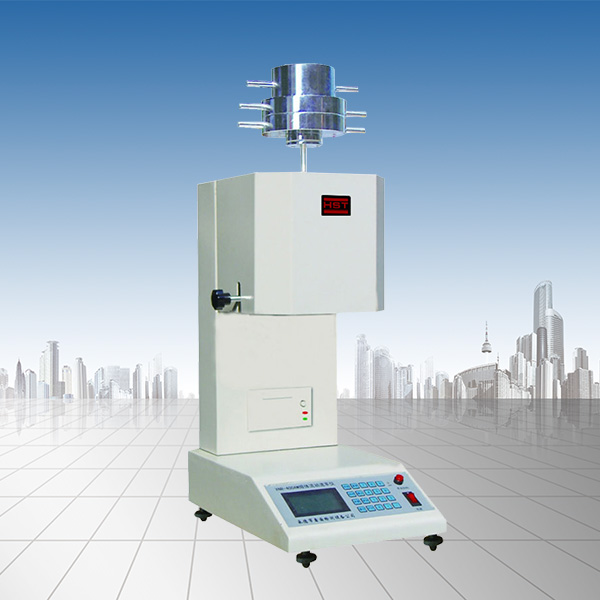

XNR-400B Melt Flow Rate Determination Device

Used to determine the fluidity of thermoplastic polymers at high temperatures, such as polyethylene, polypropylene, polyformaldehyde, ABS resin, polycarbonate, nylon fluoroplastic and other polymers.

The XNR-400B model adopts an industrial PLC programmable controller, an LCD operating platform, and the temperature part adopts a separate temperature unit and LED digital display. The automatic temperature control of the machine is divided into three types: manual, time control and automatic material cutting methods, which can realize two test methods: mass method (MFR) and volume method (MVR). The machine can measure the melt density of the raw materials at the test temperature, and the system also has a temperature calibration function.

Measurement range: 0.1-800.00g/10min (MFR)

0.1-800.00 cm3/10min (MVR)

Temperature range: room temperature -450℃

Temperature control accuracy: ±0.2℃

Timing accuracy: 0.1S

Displacement accuracy: 0.01mm

Load: Full load

Material cutting method: manual, time-controlled, automatic

Inner diameter of the barrel: 9.550mm±0.025mm

Bucket length: 160mm

Mould: material is tungsten carbide, length: 8.000mm±0.025mm Inner diameter: 2.095mm±0.005mm

Power: 0.45KW

Power supply: AC220V, 50Hz

Instrument size: 400mm×500mm×600mm

Instrument 65Kg

(The above parameters are for reference only, and the detailed parameters are mainly real equipment)
